Product Details
- Place of Origin: Shandong, China (Mainland)
- Brand Name: JULONG

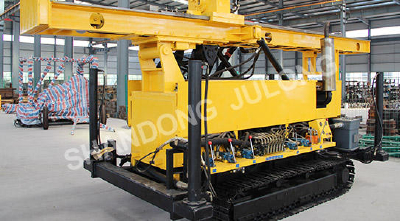

- Model Number: QY-200
| Unit machine weight | 8500KG | |
| Unit machine dimension | 5700×2300×2700mm | |
| Moving speed | 0~2.5 Km/h | |
| Diesel engine (DEUTZ brand ) | 103KW , Model: CA4DF2-140Z-5Q | |
| Power model | 103Kw/2500 | |
| Distance from underground | 245mm | |
| Hammer | DHD360 (DHD380) | |
| Climbing angle | 25° | |
| Drilling depth | 200 meters | |
| Working air pressure | 1.05-2.46 Mpa | |
| Air consumption | 16-30 m3/min | |
| Drilling rod size | Φ76mm | |
| Drilling rod length | 3000mm | |
| Drilling hole diameter | Φ115-254mm | |
| Push feeding force | 50000KN | |
| Lifting feeding force | 95000KN | |
| Rotary speed | Low speed | 52 rpm |
| High speed | 104 rpm | |
| Rotary torque | 4000N.m | |
| Drilling mast height | 5700mm | |
