- Place of Origin: Shandong, China (Mainland)
- Brand Name: JULONG
- Model Number: XYC-200GT

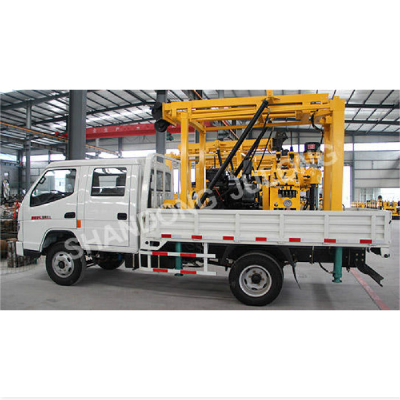

1, XYC - 200GT truck mounted drilling rig for multi-function hydraulic car vertical shaft rotary drilling rig
2, automobile chassis by tang, showing card chassis, drill transmission system and winding, mud pump, and other important accessories installed in the chassis, rational layout is compact, easy to operate
3, configuration, BW - 160 type of mud pump, high pressure, large flow, ensure the drilling depth and drilling diameter
4, drill from mobile devices, can be achieved before and after the host's own mobile drilling rig, facilitate the wellhead operation
5, hydraulic drill tower of ups and downs type automatic telescopic rig, safe and convenient operation.
To adapt to the range:
The exploration, geological roads and tall buildings foundation exploration, as well as a variety of concrete structure inspection hole, river levee, roadbed grouting hole drilling and grouting directly, civil water well and geothermal central air conditioning, etc.
Item | Number | |
---|---|---|
Drilling method | Rotary | |
Drilling depth | 200meter | |
Drilling hole diameter | ¢75mm-¢300mm | |
Power | 15 KW 22HP | |
Rig working outside size | Length | 5995mm |
Width | 2060mm | |
Height | 7500mm | |
Rig weight | 1500kg | |
Drilling Kelly | 53/59*4 meter | |
Drilling rod | ¢50mm | |
Drilling bit | ¢75mm-¢300mm | |
Spindle | 64、128、287、557 | |
Hoist | Hoist reel | ¢140mm |
Single lifting speed | 0.12、0.22、0.49、0.95 | |
Single lifting force | 24KN | |
Wire line capacity | 35 meters | |
Wire line size | ¢13mm | |
Mast | Loading capacity | 5T |
Mast height | 6m | |
Mast leg | 160×120×6 | |
Swivel | Max lifting force | 50KN |
Equipped hoise | ¢50mm | |
Mud pump | diameter | |
Model | BW-160 | |
Displacement | 160L/min | |
Working pressure | 1.3Mpa | |
Reciprocate times | 165 times/min | |
Truck | Model | OuLingZB1043LSDS |
Motor mode/ power | LN4D27E3/66KW | |
Seating capacity | 3 3 |
