- Place of Origin: Shandong, China (Mainland)
- Brand Name: JULONG
- Model Number: XYC-3

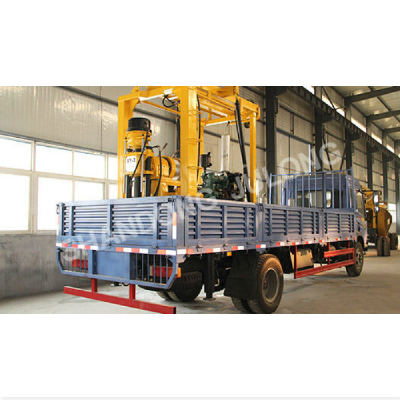

XYC-3 model truck-mounted drilling rig is truck-mounted and multi-functional hydraulic rotary drilling rig.
The truck chassis is adopt of brand “FAW JIEFANG”, the main transmit and main winch and minor winch, mud pump, mast are setup on the chassis.
The machine is equipped with BW-250 mud pump. It’s triplex mud pump. Have high pressure and large discharge, it’s adapt to the big diameter and depth hole’s drilling.
The main machine equipped with shift device, fore-and-aft movement by itself, convenient for operate.
Main winch and minor winch drive by hydraulic system, they are installed on the main drilling machine. Compact in frame. It’s adapted to the wire line coring drilling.
The machine is mainly used for water well, wire-line coring drilling, geothermic well, general investigation and exploration. Road and tall building groundsill exploration and other foundation working.
| Drilling depth | m | 100 | 250 | 300 | 600 |
| Drilling diameter | mm | 300 | 200 | 150 | 75 |
| Open hole diameter | mm | 300 | |||
| End hole diameter | mm | 75 | |||
| Drilling rod | mm | Φ60 | |||
| Drilling angle | 90°-65° | ||||
| Rotary Spindle | |||||
|---|---|---|---|---|---|
| Spindle forward speed | r/min | 57-1024 | |||
| Spindle reverse speed | r/min | 45-212 | |||
| Spindle stroke | mm | 560 | |||
| Spindle inner diameter | mm | 96 | |||
| Spindle lifting capacity | KG | 6000 | |||
| Main Winch (drive hydraulic system) | |||||
| Single line lifting speed | m/s | 0.515 0.894 1.421 1.948 | |||
| Hug floodgate belt width | mm | 90 | |||
| Tightrope diameter | mm | 14 | |||
| Hoist single line lifting capacity | KG | 4500 | |||
| Roller diameter | mm | 200 | |||
| Roller cubic measure | m | 30 | |||
| Minor Winch ( drive hydraulic system) | |||||
| Roller diameter | mm | 140 | |||
| Wire rope diameter | mm | 6 | |||
| Capacity roller | m | 450 | |||
| Mud pump | |||||
| Horizontal Triplex BW-250 mud pump | |||||
| Displacement | L/min | 250 | |||
| Work pressure | kg/c㎡ | 80kg/cm² | |||
| Water inlet caliber | mm | 75 | |||
| Water to exit caliber | mm | 50 | |||
| Gear Oil pump | |||||
| Duplex gear oil pump F532/F314 | |||||
| Front displacement、pressure | 50L/min 20Mpa | ||||
| Behind displacement、pressure | 16L/min 20Mpa | ||||
| Drilling rig Power | |||||
| Diesel engine | Hp | 4105 50HP | |||
| Electric motor | KW | Y180L-4 22KW | |||
| Truck chassis | |||||
| Model | CA1083K28L4A | ||||
| Drive form | 4×2 | ||||
| Engine of truck | No | CA4DF3-13E3 | |||
| Displacement / power | 4752mL/96Kw | ||||
| Discharge | GB3847-2005 | ||||
| Weight complete machine | KG | 9550 | |||
| Moved size (L×W×H) | mm | 9500×2500×3540 | |||
| Working size (L×W×H) | mm | 7700×2500×10500 | |||
| Transport size (L×W×H) | mm | ||||
