- Place of Origin: Shandong, China (Mainland)
- Brand Name: JULONG
- Model Number: XYX-2
Main features:

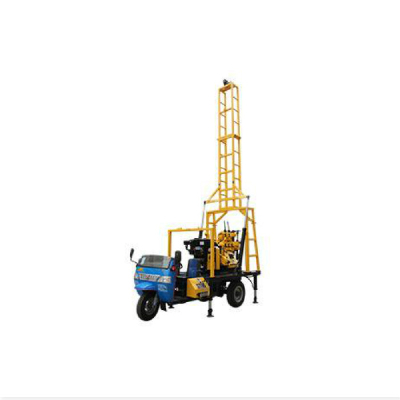

1, XYC - 200 automotive rig for multi-function hydraulic car vertical shaft rotary drilling rig
2, automobile chassis adopts five sign 7 yp - 1475 d1 three-wheeled vehicles, drilling drive system and winding, mud pump, and other important accessories installed in the chassis, rational layout is compact, easy to operate
3, configuration, BW - 160 type of mud pump, high pressure, large flow, ensure the drilling depth and drilling diameter
4, drill from mobile devices, can be achieved before and after the host's own mobile drilling rig, facilitate the wellhead operation
5, hydraulic drill tower of ups and downs folding rig, safe and convenient operation.
To adapt to the range:
The exploration, geological roads and tall buildings foundation exploration, as well as a variety of concrete structure inspection hole, river levee, roadbed grouting hole drilling and grouting directly, civil water well and geothermal central air conditioning, etc.
Specifications | |
---|---|
Unity machine parameter | |
Drilling depth | 30--200m |
End hole caliber | 500-75mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight (No include power) | 910kg |
Unity machine dimensions | 2.5×1×1.3 2.5×0.9×1.3m |
Spindle | |
spindle speed | 64、128、287、557r/min |
Spindle stroke | 450mm |
Hoist | |
Max. single line hoisting capacity | 2400kg |
Single line lifting speed | 17、35、75、151r/min |
Tightrope caliber | 12.5mm |
Tightrope cubic measure | 35m |
Hug floodgate caliber | 254mm |
Hug floodgate belt width | 70mm |
Distance between drill and hole | 400mm |
Mud pump - Specifications | |
Type | Horizontal single urn twin-action |
Displacement | 170L/min |
Diesel engine | S1115 Model 22HP |
Electric motor | Y160M—4 15kw 1440r/min |
Maximum pressure | 1.5Mpa |
Work pressure | 0.7Mpa |
Water inlet caliber | 40mm |
Water to exit caliber | 30mm |
Triangle conveyer belt | B1728mm |
Suit scope | |
Water well , exploration |
